Angle Drill Attachment ZT55 bis

ZEPHYR > Products > AEROSPACE > TEST > Angle Drill Attachment ZT55 bis
Back to results
Sale!

Angle Drill Attachment ZT55 bis

From $450.00

  • Buy 20 for $400.00 each and save 11.11%
  • Buy 30 for $300.00 each and save 33.33%

The ZT55 series flat offset angle drill attachments have been designed to run at any speed up to 3,000 rpm in the tightest and most demanding applications.

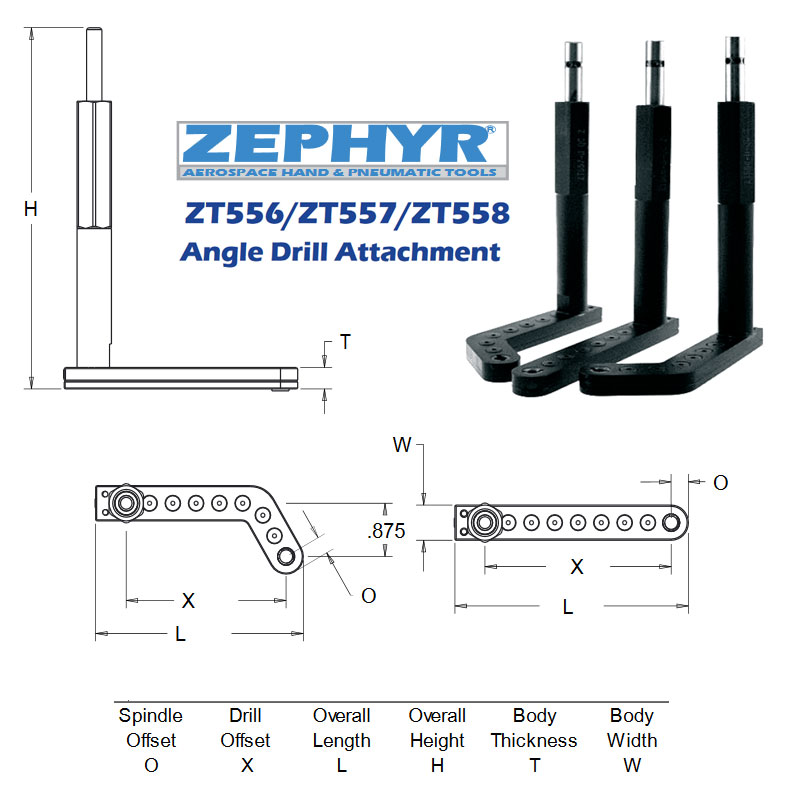

Spindle Offset: .280
Drill Offset: .305  (straight)   .262 (angle)
Overall Height: 5.75
Body Thickness: .343
Body Width: .562
Drill Capacity: 1/4″ Alum.
Overall Length: 3.82  (straight)   3.40 (angle)

Choose Angle: *

Choose Spindle Thread: *

Chose Drive shaft *

You must purchase at least 10 of this product

This product can be purchased by increments of 10

Categories: , , , Tags: , , , ,

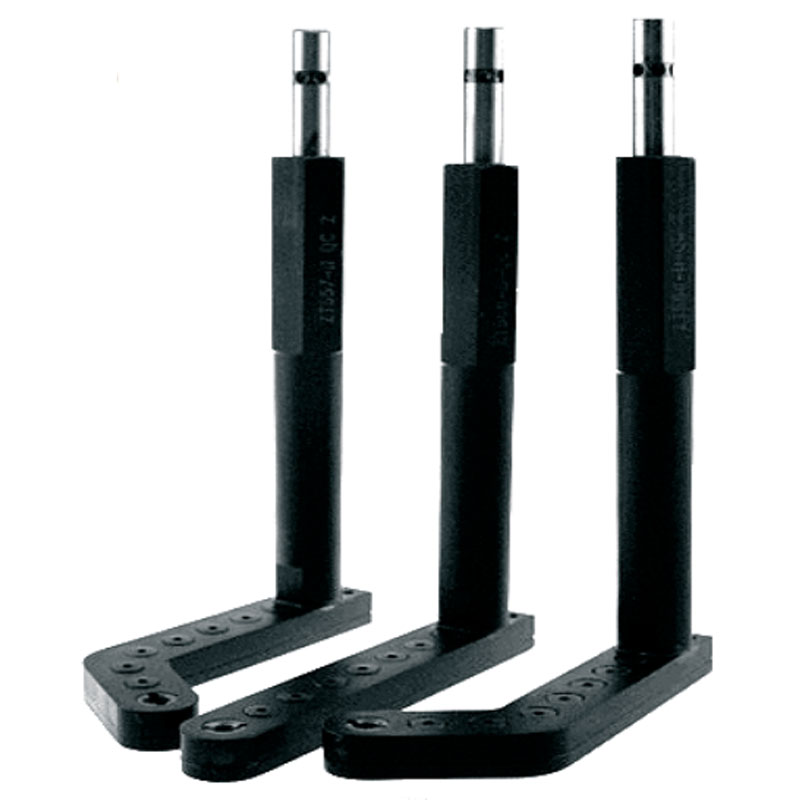

The ZT556/ZT557/ZT558 series flat offset angle drill attachments have been designed to run at any speed up to 3,000 rpm in the tightest and most demanding applications. This angle drill is well suited for all metallic, graphite and composite materials used in the aircraft industry today.

Features include:

  • Standard duty.
  • Drive shaft and idler gear shafts are all supported by ball bearings.
  • Drive shafts are available with 1/4″ round (no suffix), 1/4″ round with three flats (TF) and quick change (QC) drive shafts.
  • Spindle gears are available with standard 10-32 (D) and 1/4-28 (C) internal threads.

Angle Drill Attachment ZT55 series ZT556 ZT557 ZT558 Zephyr Tools

ZEPHYR Angle Drill Attachment & Accessories

Download File
